SEMI CONDUCTOR BASICS

1. Semiconductor

- Definition: A semiconductor is a material with electrical conductivity between that of a conductor (like copper) and an insulator (like glass). Its conductivity can be altered by adding impurities, applying electrical fields, or changing temperature.

- Example: Silicon (Si) is the most commonly used semiconductor material in the industry.

2. Doping

- Definition: Doping is the process of intentionally introducing impurities into a semiconductor to modify its electrical properties. There are two types of doping: n-type (adding donors like phosphorus) and p-type (adding receptors like boron).

- Example: Adding phosphorus to silicon creates an n-type semiconductor, where extra electrons are available for conduction.

a close up of a bunch of diamonds
a close up of a bunch of diamonds
A micro processor sitting on top of a table
A micro processor sitting on top of a table

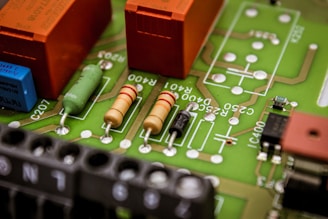

a close up of a circuit board with some electronic components
a close up of a circuit board with some electronic components
3. PN Junction

- Definition: A PN junction is formed when p-type and n-type semiconductor materials are joined together. This junction is crucial in semiconductor devices, as it allows current to flow in one direction while blocking it in the opposite direction.

- Example: A basic diode is a semiconductor device made from a single PN junction.

a group of colorful chairs
a group of colorful chairs
blue circuit board
blue circuit board
a circuit board with many small chips
a circuit board with many small chips

4. MOSFET (Metal-Oxide-Semiconductor Field-Effect Transistor)

- Definition: A MOSFET is a type of transistor used to amplify or switch electronic signals. It has four terminals: source, drain, gate, and body. The voltage applied to the gate controls the current between the source and drain.

- Example: MOSFETs are fundamental components in CPUs, where millions are integrated to perform complex operations.

6. Node

- Definition: In semiconductor manufacturing, a node refers to a specific level of miniaturization of the transistors on an IC, usually measured in nanometers (nm). The node size impacts the power efficiency, performance, and density of the chip.

- Example: A 5nm node chip has transistors that are smaller and more power-efficient than those on a 10nm node chip.

5. Integrated Circuit (IC)

- Definition: An Integrated Circuit (IC) is a set of electronic circuits on a small flat piece (or "chip") of semiconductor material, typically silicon. ICs can contain thousands to billions of transistors, resistors, and capacitors.

- Example: Microprocessors, memory chips, and sensors are all examples of ICs.

a close up of a metal plate with squares on it
a close up of a metal plate with squares on it
a person in a lab coat looking at a mirror
a person in a lab coat looking at a mirror
a group of electronic devices sitting on top of a table
a group of electronic devices sitting on top of a table

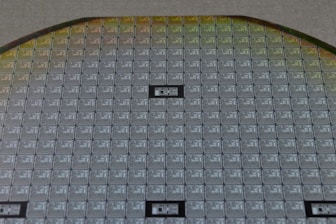

7. Wafer

- Definition: A wafer is a thin slice of semiconductor material, usually silicon, used to fabricate integrated circuits and other microdevices. Wafers serve as the substrate for microelectronic devices built in and over the wafer.

- Example: A 12-inch silicon wafer can contain hundreds of individual ICs, which are later cut out and packaged.

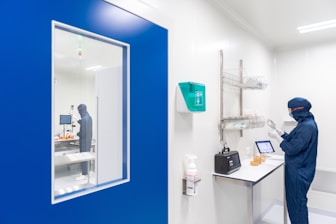

8. Cleanroom

- Definition: A cleanroom is a controlled environment used in semiconductor manufacturing where the concentration of airborne particles is minimized to avoid contamination during the production of semiconductor devices.

- Example: Cleanrooms are essential in the photolithography process, where even a tiny dust particle can ruin an entire wafer.

9. Lithography

- Definition: Lithography is a process used in semiconductor manufacturing to transfer patterns onto a wafer. This process involves coating the wafer with a light-sensitive material called photoresist, exposing it to light through a mask, and developing the exposed pattern.

- Example: Extreme Ultraviolet Lithography (EUV) is an advanced form of lithography used to produce the smallest nodes, such as 7nm and below.

10. Moore's Law

- Definition: Moore's Law is the observation that the number of transistors on a microchip doubles approximately every two years, leading to continuous improvements in computing power and reductions in cost.

- The historical trend of transistor density over time, demonstrating how Moore's Law has driven the semiconductor industry’s exponential growth.

This in-depth exploration of semiconductor terminologies, AI & advanced technologies providing a comprehensive understanding of the fundamental concepts in semiconductor technology.

black and blue audio mixer
black and blue audio mixer
1. MOS Capacitor

- Definition: A MOS capacitor is the simplest form of a MOS structure, consisting of a metal gate, an oxide layer, and a semiconductor substrate. It is a fundamental component used in MOSFETs and other semiconductor devices.

- Operation: The MOS capacitor operates by applying a voltage to the metal gate, which affects the charge distribution in the semiconductor, allowing for the accumulation, depletion, or inversion of charge carriers.

- Example: MOS capacitors are used in dynamic random-access memory (DRAM) cells, where they store charge representing data bits.

a group of black and white objects
a group of black and white objects
two square blue LED lights
two square blue LED lights
2. MOSFET (Metal-Oxide-Semiconductor Field-Effect Transistor)

- Definition: A MOSFET is a type of transistor used extensively in electronic circuits for switching and amplification. It has four terminals: the gate, source, drain, and body.

- Types of MOSFETs:

- n-channel MOSFET (nMOS): Utilizes electrons as the charge carriers, which flow from the source to the drain when a positive voltage is applied to the gate.

- p-channel MOSFET (pMOS): Utilizes holes as the charge carriers, which flow from the source to the drain when a negative voltage is applied to the gate.

- Example: MOSFETs are integral in digital circuits, such as logic gates in microprocessors and power regulation circuits in power management systems.

3. CMOS (Complementary Metal-Oxide-Semiconductor)

- Definition: CMOS technology utilizes a combination of nMOS and pMOS transistors to create logic gates and other circuits with low power consumption. The complementary nature of the transistors allows for efficient operation, with minimal power loss.

- Operation: In a CMOS inverter, for example, the nMOS transistor conducts when the input is high, pulling the output to ground, while the pMOS transistor conducts when the input is low, pulling the output to the supply voltage.

- Example: CMOS technology is widely used in microprocessors, memory chips, and sensors due to its energy efficiency and high noise immunity.

Identifying Different Types of Metal Oxide Semiconductors (MOSs)

Metal Oxide Semiconductors (MOSs) play a crucial role in modern electronics, forming the backbone of devices such as transistors, integrated circuits (ICs), and various other semiconductor components. Understanding the different types of MOS structures is essential for grasping how these components function in various applications. This section provides an in-depth description of the different types of MOSs, enriched with illustrations, examples, graphs, and an exploration of how AI technology is integrated into their design and application.

a large green door with gold decorations on it
a large green door with gold decorations on it
flat lay photography of circuit board
flat lay photography of circuit board

4. MOSFET Variants

- Power MOSFET:

- Definition: Power MOSFETs are designed to handle high power levels and are commonly used in power electronics, such as power supplies and motor drivers.

- Example: Power MOSFETs are used in electric vehicles for efficient power management in the motor control units.

Double-Gate MOSFET:

- Definition: A Double-Gate MOSFET has two gates controlling the channel, allowing for better control of the channel and reducing leakage currents, making it suitable for advanced digital circuits.

Example: Used in ultra-low-power devices and advanced microprocessors where leakage current is a critical concern.

5. FinFET (Fin Field-Effect Transistor)

- Definition: FinFET is a type of MOSFET where the conducting channel is wrapped around a thin silicon "fin" structure, providing better electrostatic control over the channel, reducing leakage, and improving performance.

- Operation: The fin structure allows for a higher surface area in contact with the gate, enabling better control over the channel and allowing for smaller, more efficient transistors.

- Example: FinFETs are used in advanced nodes (e.g., 7nm, 5nm) in processors, providing better performance and energy efficiency than traditional planar MOSFETs.

6. IGBT (Insulated Gate Bipolar Transistor)

- Definition: An IGBT is a semiconductor device that combines the high efficiency and fast switching of a MOSFET with the high power handling capabilities of a bipolar junction transistor (BJT). It is widely used in power electronics.

- Example: IGBTs are used in electric vehicle inverters, industrial motor drives, and power grids where high efficiency and high current capacity are required.

a close up of a computer keyboard
a close up of a computer keyboard

Graphene MOSFET:

- Definition: Graphene MOSFETs are emerging devices that use graphene, a single layer of carbon atoms, as the channel material. Graphene offers high electron mobility and excellent electrical properties.

- Example: While still in the research phase, graphene MOSFETs are promising for future ultra-high-speed electronic applications.

- AI Technology Integration: AI-driven materials science is used to explore and optimize the properties of graphene, predicting how modifications to the material might enhance the performance of these transistors.

7. Advanced MOS Technologies and AI Integration

- SOI MOSFET (Silicon-On-Insulator):

- Definition: SOI MOSFETs use a thin layer of silicon over an insulating layer of silicon dioxide, which reduces parasitic capacitance and improves performance in high-speed and low-power applications.

- Example: Used in high-performance computing applications where speed and power efficiency are critical.

- AI Technology Integration: AI algorithms are used to optimize the design of SOI MOSFETs, simulating various configurations to achieve the best performance with the lowest power consumption.

Distinguishing the Different Segments of an Integrated Circuit (IC) and Major Advancements in Each Segment

Integrated Circuits (ICs) are the fundamental building blocks of modern electronics, containing a myriad of components such as transistors, resistors, capacitors,and more, all integrated onto a single silicon chip.These components are organized into distinct segments, each playing a crucial role in the IC's overall functionality.

a close up of two electronic devices on a table
a close up of two electronic devices on a table
windmill surrounded by grass during daytime
windmill surrounded by grass during daytime
a black electronic device
a black electronic device
two black audio mixers
two black audio mixers

1. Logic Segment

- Definition: The logic segment of an IC consists of digital circuits that perform various computational tasks. These circuits are composed of logic gates, which are the fundamental building blocks for digital systems like processors, memory controllers, and digital signal processors.

- Examples: Arithmetic Logic Unit (ALU): Part of the CPU responsible for carrying out arithmetic and logical operations.

- Control Units: Manage the execution of instructions in a processor.

- Advancements: Scaling and Miniaturization: The ongoing reduction in transistor size, following Moore's Law, has led to more powerful and energy-efficient logic circuits.

- FinFET Technology: The transition from planar transistors to FinFETs has allowed for greater control over electron flow, improving performance and reducing power consumption.

4. Power Management Segment

- Definition: The power management segment includes circuits responsible for regulating, converting, and distributing power within an IC. These circuits ensure that each part of the IC receives the correct voltage and current to operate efficiently.

- Examples: Voltage Regulators: Maintain a constant output voltage despite variations in input voltage or load conditions.

- Buck Converters: Convert higher input voltages to lower output voltages efficiently, often used in battery-powered devices.

- Advancements: Digital Power Management: Integration of digital control in power management circuits allows for more precise control of voltage and current, improving efficiency.

- Wide Bandgap Semiconductors: Materials like Gallium Nitride (GaN) and Silicon Carbide (SiC) enable power management ICs that operate at higher voltages and frequencies, with lower losses.

2. Memory Segment

- Definition: The memory segment of an IC is responsible for storing data. It includes various types of memory, such as SRAM (Static RAM), DRAM (Dynamic RAM), and non-volatile memory like Flash.

- Examples:RAM: Used for cache memory in processors due to its speed.

- DRAM: Commonly used for main system memory in computers.

- Flash Memory: Used in solid-state drives (SSDs) and USB drives.

- Advancements: 3D NAND Technology: Stacks multiple layers of memory cells vertically, significantly increasing storage density and reducing costs.

- Spin-Transfer Torque RAM (STT-RAM): A type of non-volatile memory that promises faster speeds and lower power consumption than traditional Flash memory.

3. Analog Segment

- Definition: The analog segment of an IC includes circuits that process analog signals, which are continuous in nature, as opposed to the discrete signals processed by digital circuits. Analog circuits are crucial for interfacing the digital core of an IC with the real world.

- Examples: Operational Amplifiers (Op-Amps): Used in signal conditioning, filtering, and other analog signal processing tasks.

- Analog-to-Digital Converters (ADC): Convert analog signals into digital data for processing by the digital segment of the IC.

- Digital-to-Analog Converters (DAC): Convert digital data back into analog signals for output.

- Advancements: High-Precision Analog Circuits: Improvements in manufacturing processes have led to analog circuits with higher precision and lower noise levels.

- Integrated Power Management ICs (PMICs): Combine multiple power management functions into a single chip, improving efficiency in power-sensitive applications like mobile devices.

a large white and black building with windows
a large white and black building with windows
a large group of white toilet rolls stacked on top of each other
a large group of white toilet rolls stacked on top of each other

5. Interconnect Segment

- Definition: The interconnect segment includes the wiring and connections within an IC that link different components together. This segment is crucial for the communication between the logic, memory, analog, and power segments.

- Examples: Metal Layers: Multiple layers of metal interconnects (typically copper or aluminum) route signals across the IC.

- Through-Silicon Vias (TSVs): Vertical connections through the silicon wafer, enabling 3D IC stacking and reducing signal delay.

- Advancements: Copper Interconnects: Replacing aluminum with copper as the material for interconnects has reduced resistance and increased signal speed.

- Low-k Dielectrics: Materials with low dielectric constants reduce capacitance between interconnects, improving signal integrity and reducing power consumption.

6. Input/Output (I/O) Segment

- Definition: The I/O segment is responsible for the communication between the IC and the external environment. It includes circuits that drive signals off-chip and receive signals from external sources.

- Examples: I/O Buffers: Protect internal circuits from external noise and drive signals with sufficient strength to external pins.

- SerDes (Serializer/Deserializer): Converts data between serial and parallel formats, enabling high-speed data transmission over fewer wires.

- Advancements: High-Speed I/O Standards: The development of standards like PCIe, USB, and HDMI has led to faster and more reliable data transmission.

- Differential Signaling: Reduces noise and crosstalk in high-speed I/O, enabling faster and more reliable communication.

7. AI Technology Integration in IC Segments

- Design Automation: AI is increasingly used in Electronic Design Automation (EDA) tools to optimize the layout and design of each IC segment, leading to faster design cycles and more efficient circuits.

- Predictive Modeling: AI algorithms can predict the performance and reliability of ICs based on various design parameters, helping engineers make informed decisions during the design process.

- Process Optimization: AI is also used to optimize manufacturing processes, ensuring that each segment of the IC meets stringent performance and quality standards.

- Self-Healing Circuits: Emerging AI-driven technologies are enabling the development of self-healing circuits that can detect and correct faults within the IC, enhancing reliability and extending the lifespan of devices.

a close up of a computer circuit board
a close up of a computer circuit board
windmill surrounded by grass during daytime
windmill surrounded by grass during daytime
a cube shaped building on a rock
a cube shaped building on a rock
photography of white wall lot
photography of white wall lot

Recognizing Moore's Law and the Evolution of Technology Nodes

Moore’s Law has been a driving force behind the exponential growth of the semiconductor industry for more than five decades. It not only symbolizes the rapid advancements in microelectronics but also represents the relentless pursuit of innovation in technology nodes.

1. Moore’s Law: Definition and Historical Context

Definition: - Moore’s Law: Originally stated by Gordon Moore, co-founder of Intel, in 1965, Moore's Law observed that the number of transistors on a microchip doubles approximately every two years, leading to an exponential increase in computational power and a corresponding decrease in relative cost.

Historical Context: - Origin: Moore predicted this trend would continue for at least a decade, but it has now held for over five decades, becoming a self-fulfilling prophecy as the semiconductor industry consistently pushed the limits of miniaturization.

- Impact: The consistent scaling down of transistors has enabled the development of more powerful, energy-efficient, and cost-effective microprocessors, memory chips, and other semiconductor devices.

2. Evolution of Technology Nodes

Definition: - Technology Node: A technology node, also known as a process node, refers to a specific manufacturing process used in semiconductor fabrication. It is often characterized by the smallest feature size (e.g., 90nm, 45nm, 7nm) that can be reliably created on a chip.

Technology Node Scaling: As the nodes advance from 90nm to 3nm, the transistors become smaller and more densely packed, illustrating the increasing complexity and power of each successive generation.

3. Impact of Moore’s Law on Semiconductor Performance

Performance Metrics:- Transistor Density: As nodes shrink, transistor density increases, leading to more powerful and capable chips.

- Power Consumption: Smaller transistors typically consume less power, making devices more energy-efficient.

- Cost per Transistor: Historically, the cost per transistor has decreased with each new node, although this trend is becoming more challenging to maintain as nodes approach the atomic scale.

a couple of microchips sitting on top of a table
a couple of microchips sitting on top of a table

5. AI Technology’s Role in Extending Moore’s Law

AI in Design and Manufacturing: Design Automation: AI-driven Electronic Design Automation (EDA) tools optimize chip design, identifying the best configurations to maximize performance and minimize power consumption at smaller nodes.

- Predictive Modeling: AI models predict the behavior of transistors at atomic scales, allowing engineers to anticipate and mitigate issues like quantum effects and thermal runaway.

- Process Optimization: AI is used in semiconductor fabrication to optimize processes, reduce defects, and enhance yield, enabling more efficient production at advanced nodes.

4. Challenges and Limits of Moore’s Law

Physical Limitations: Quantum Tunneling: As transistors shrink to the scale of a few atoms, quantum tunneling effects cause electrons to leak through insulating barriers, leading to increased power consumption and heat.

- Heat Dissipation: Managing heat in increasingly dense circuits is becoming a major challenge, necessitating new cooling technologies and materials.

- Manufacturing Complexity: The complexity and cost of manufacturing at advanced nodes have skyrocketed, leading to longer development cycles and higher prices for leading-edge chips.

6. The Future Beyond Moore’s Law

Post-Moore Technologies: Quantum Computing: Leveraging quantum mechanics, quantum computers use qubits to perform calculations far beyond the reach of classical computers, potentially sidestepping the limitations of transistor scaling.

- Neuromorphic Computing: Mimicking the human brain, neuromorphic chips are designed to handle tasks like pattern recognition and learning more efficiently than traditional processors.

- 3D Integration: Stacking multiple layers of transistors vertically (3D ICs) could extend the performance improvements associated with Moore's Law by increasing density without shrinking individual transistors further.

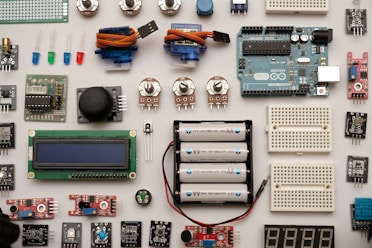

Explaining Common Semiconductor Devices, Their Working Principles, and Their Applications:

Semiconductor devices are the fundamental components of modern electronic systems, powering everything from simple diodes to complex microprocessors. Understanding these devices, their working principles, and their applications is crucial for anyone involved in electronics or semiconductor technology.

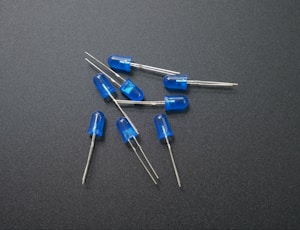

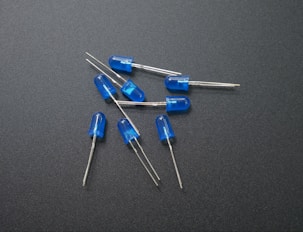

a group of blue capacitors sitting on top of a table
a group of blue capacitors sitting on top of a table
a close up of a computer and wires in a dark room
a close up of a computer and wires in a dark room
a close up of a computer motherboard with pink lights
a close up of a computer motherboard with pink lights

1. Diode

Definition: A diode is a semiconductor device that allows current to flow in one direction while blocking it in the opposite direction.

- Construction: A diode typically consists of a PN junction, where p-type and n-type semiconductors meet.

- Operation: When a positive voltage is applied to the anode relative to the cathode, the diode becomes forward-biased, allowing current to flow. When the voltage polarity is reversed, the diode becomes reverse-biased, and current is blocked.

Applications: Rectification: Diodes are widely used in rectifiers to convert alternating current (AC) to direct current (DC).

- Signal Demodulation: Diodes are used in radio receivers to demodulate signals.

- Overvoltage Protection: Zener diodes are used to protect circuits by clamping voltage levels and preventing damage from overvoltage.

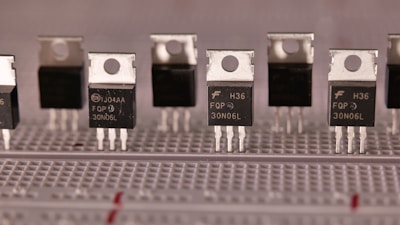

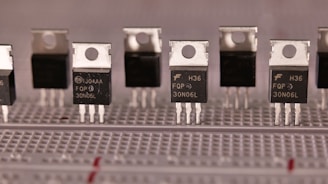

2. Transistor

Definition: A transistor is a semiconductor device used to amplify or switch electronic signals and power.

- Types: The most common types of transistors are Bipolar Junction Transistors (BJTs) and Metal-Oxide-Semiconductor Field-Effect Transistors (MOSFETs).

- BJT Operation: BJTs have three terminals: emitter, base, and collector. The current flowing between the emitter and collector is controlled by the current flowing into the base.

- MOSFET Operation: MOSFETs also have three terminals: source, drain, and gate. The voltage applied to the gate controls the current flowing between the source and drain.

Applications: Switching: Transistors are used as switches in digital circuits, such as logic gates and microprocessors.

- Amplification: Transistors amplify weak electrical signals in devices like audio amplifiers and radio transmitters.

- Power Regulation: Power transistors are used in voltage regulators and power management circuits to control large currents.

3. Capacitor

Definition: A capacitor is a passive electronic component that stores electrical energy in an electric field.

- Construction: A capacitor typically consists of two conductive plates separated by an insulating material (dielectric).

- Operation: When a voltage is applied across the plates, an electric field is established, and charge accumulates on the plates, storing energy. The capacitor discharges when the voltage is removed.

Applications: Energy Storage: Capacitors store energy for power supply smoothing in power electronics.

- Filtering: Capacitors are used in filter circuits to block DC components while allowing AC signals to pass.

- Timing Circuits: Capacitors are essential in timing circuits, such as those found in oscillators and signal generators.

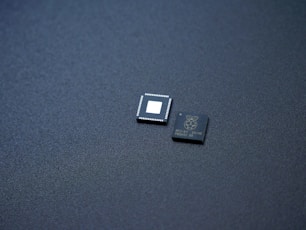

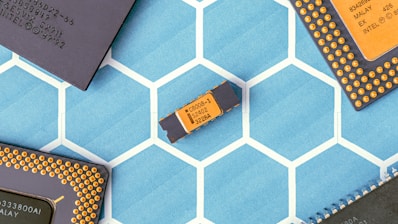

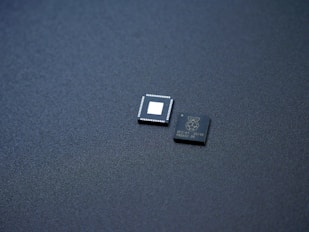

5. Integrated Circuit (IC)

Definition: An Integrated Circuit (IC) is a semiconductor device that contains multiple electronic components (such as transistors, resistors, capacitors, etc.) integrated onto a single silicon chip.

- Construction: ICs are fabricated using photolithography and etching processes on a semiconductor wafer, with layers of materials deposited to form the various components.

- Operation: ICs function as complete electronic systems, with various segments (logic, memory, analog, power management) working together to perform specific tasks.

Applications: Microprocessors: ICs serve as the brains of computers and smartphones, processing instructions and managing data.

- Memory Chips: ICs are used in RAM and flash memory to store data in digital systems.

- Sensors: ICs in sensors detect environmental changes and convert them into electronic signals for processing.

4. Inductor

Definition: An inductor is a passive electronic component that stores energy in a magnetic field when electric current flows through it.

- Construction: An inductor typically consists of a coil of wire wound around a core (which can be air, iron, or ferrite).

- Operation: When current flows through the coil, a magnetic field is generated, which opposes changes in current. This property is known as inductance.

Applications: Filters: Inductors are used in LC (inductor-capacitor) filters to allow certain frequencies to pass while blocking others.

- Transformers: Inductors are the fundamental components of transformers, which transfer electrical energy between circuits through electromagnetic induction.

- Energy Storage: In power supplies, inductors store energy to maintain current flow during switching cycles.

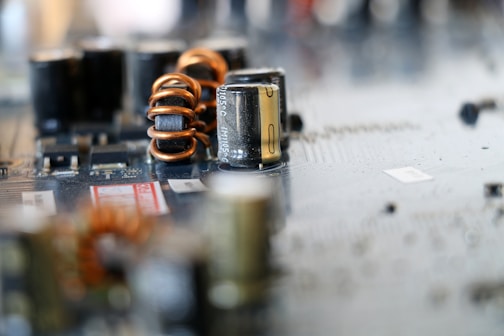

a close up of a piece of electronic equipment
a close up of a piece of electronic equipment

6. Optoelectronic Devices

Definition: Optoelectronic devices are semiconductor devices that convert electrical signals into light (or vice versa). Common examples include Light Emitting Diodes (LEDs), photodiodes, and laser diodes.

- LED Operation: LEDs emit light when an electric current passes through a semiconductor material, causing electrons to recombine with holes and release energy in the form of photons.

- Photodiode Operation: Photodiodes convert light into an electrical current. When photons hit the semiconductor material, they generate electron-hole pairs, resulting in a flow of current.

Applications: Lighting: LEDs are widely used in displays, lighting systems, and indicators due to their energy efficiency and long lifespan.

- Communication: Laser diodes and photodiodes are used in fiber optic communication to transmit and receive data via light signals.

- Sensing: Photodiodes are used in cameras, light sensors, and other applications where light detection is required.

7. AI Technology in Semiconductor Devices

Design Optimization: AI-Driven EDA Tools: AI algorithms are used in Electronic Design Automation (EDA) tools to optimize the design of semiconductor devices. These tools can simulate millions of design iterations to find the most efficient and cost-effective configurations.

Manufacturing Process Control:

- Predictive Maintenance: AI is used to predict when semiconductor manufacturing equipment will need maintenance, reducing downtime and improving yield.

- Defect Detection: AI-driven image recognition systems are employed to detect defects in semiconductor wafers during the fabrication process, ensuring higher quality and reducing waste.

Application in Smart Devices:

- AI Chips: Specialized ICs designed for AI processing, such as GPUs and TPUs, leverage semiconductor advancements to perform complex computations required for AI tasks like machine learning and neural networks.
